Scope
Design an axle that would be an upgrade for stock "Axial" trucks.
Challenges
- Design has to be modular and work with multiple truck versions
- Axle has to be robust to exceed customer expectations
- Axle has to be lightweight to reduce the unsprung mass
- Adjustable camber
- Teraflex style guidelines
- Axle has to be robust to exceed customer expectations
- Axle has to be lightweight to reduce the unsprung mass
- Adjustable camber
- Teraflex style guidelines
Deliverables
- Sturdy design of an axle was proven to be the best in class
CAD design

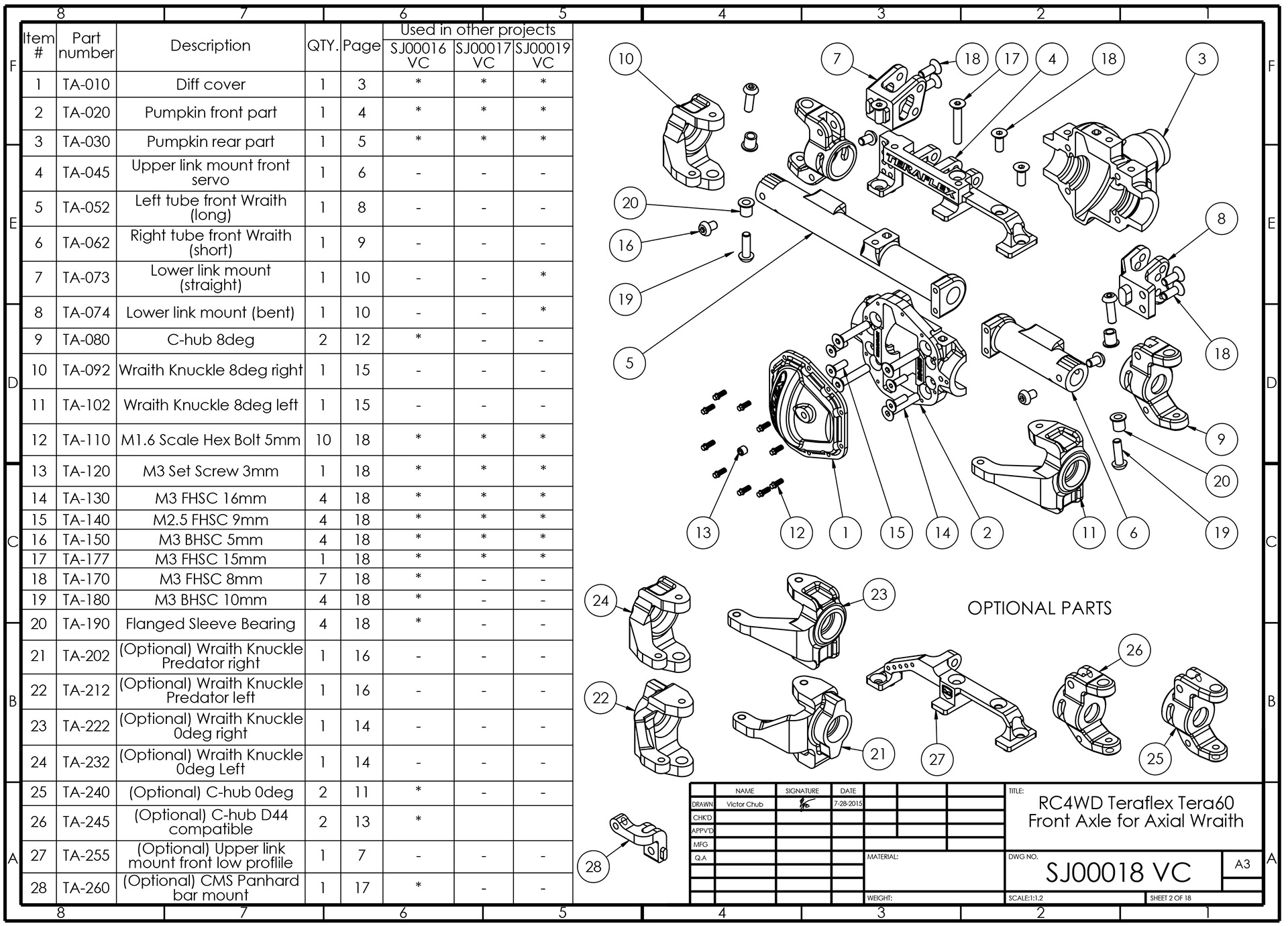

![](https://cdn.myportfolio.com/140cb7b4-d6a4-4d25-820b-52a47e89badd/2b0f38d3-c360-48b0-9f8f-8c634668d0f7_rw_1920.jpg?h=5fed4a5cbaacc1653b531b9a0e2a60d4)

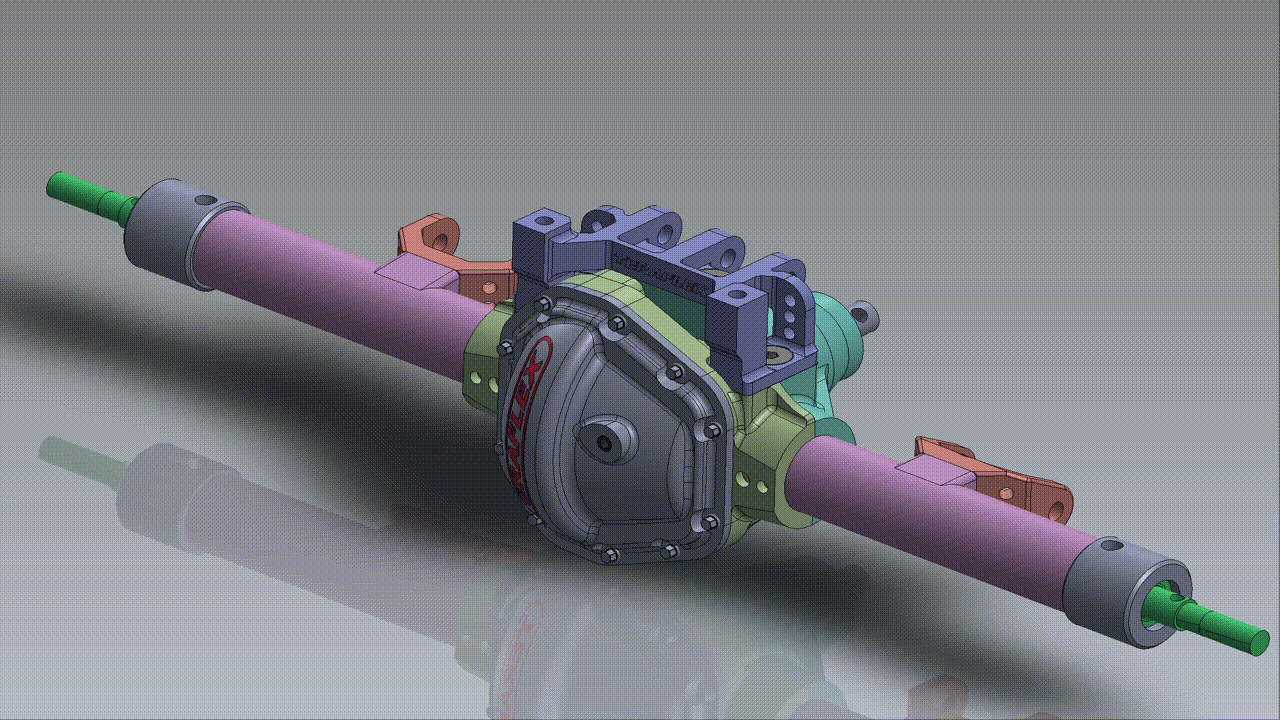

![](https://cdn.myportfolio.com/140cb7b4-d6a4-4d25-820b-52a47e89badd/17a5911a-5f34-4c68-85cd-662ca788effd_rw_1920.jpg?h=40c4414697e822144d1c292b7c9b99da)

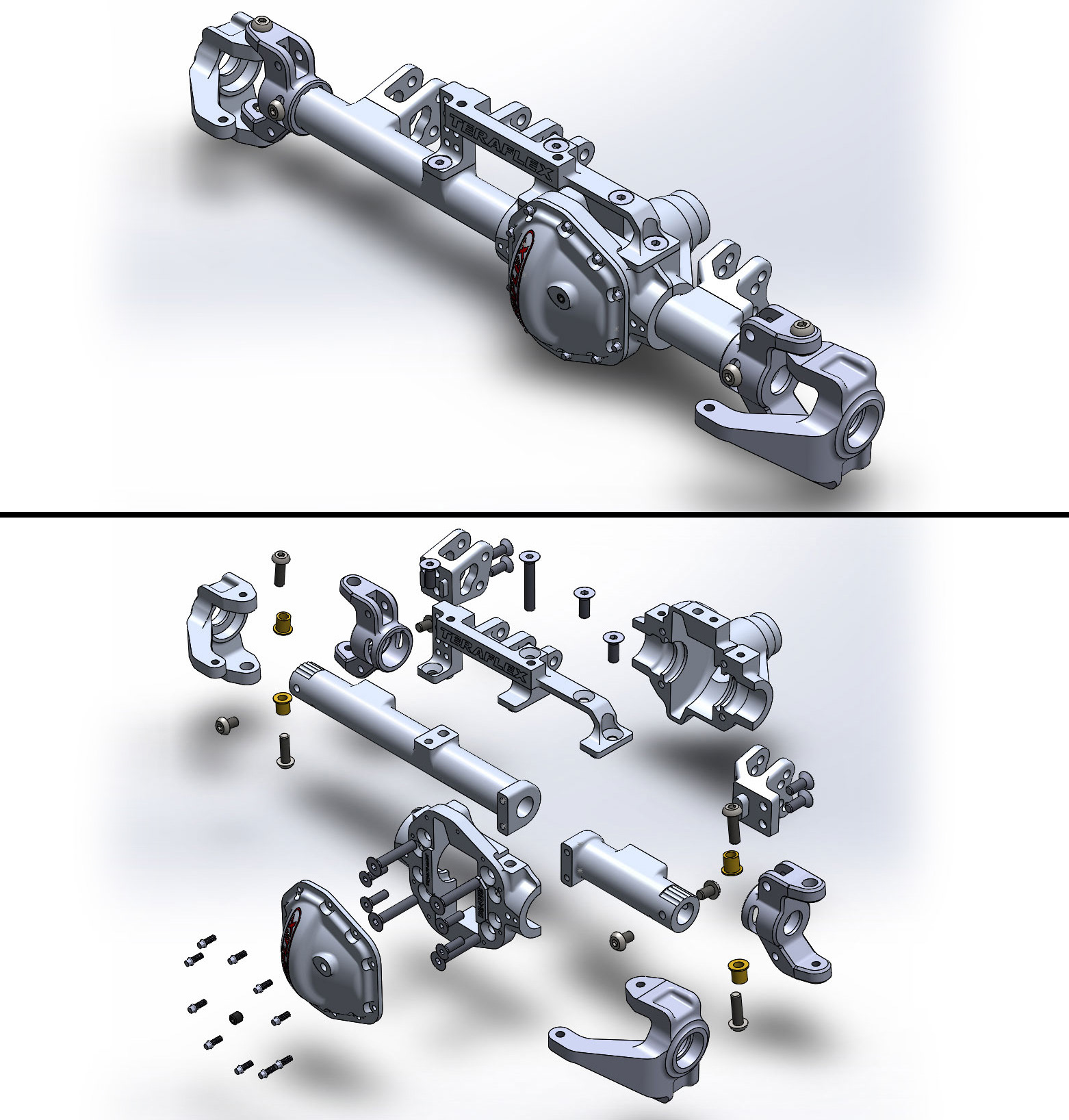

![](https://cdn.myportfolio.com/140cb7b4-d6a4-4d25-820b-52a47e89badd/2615f28c-cc45-48bd-b352-4792d62e2dbc_rw_1920.jpg?h=db181828b52cfadb303e62258ab226f6)
![](https://cdn.myportfolio.com/140cb7b4-d6a4-4d25-820b-52a47e89badd/e373ebb1-22f7-4cc9-8c96-97fd2e000f0e_rw_1920.gif?h=80e6d9f9f195918c8dad1d7d23749c51)
Photos
![](https://cdn.myportfolio.com/140cb7b4-d6a4-4d25-820b-52a47e89badd/5866f1a9-a80a-458d-81f9-9f0fc4909ebe_rw_3840.jpg?h=abfa23599ffa56fecaf2fc47b1c86843)

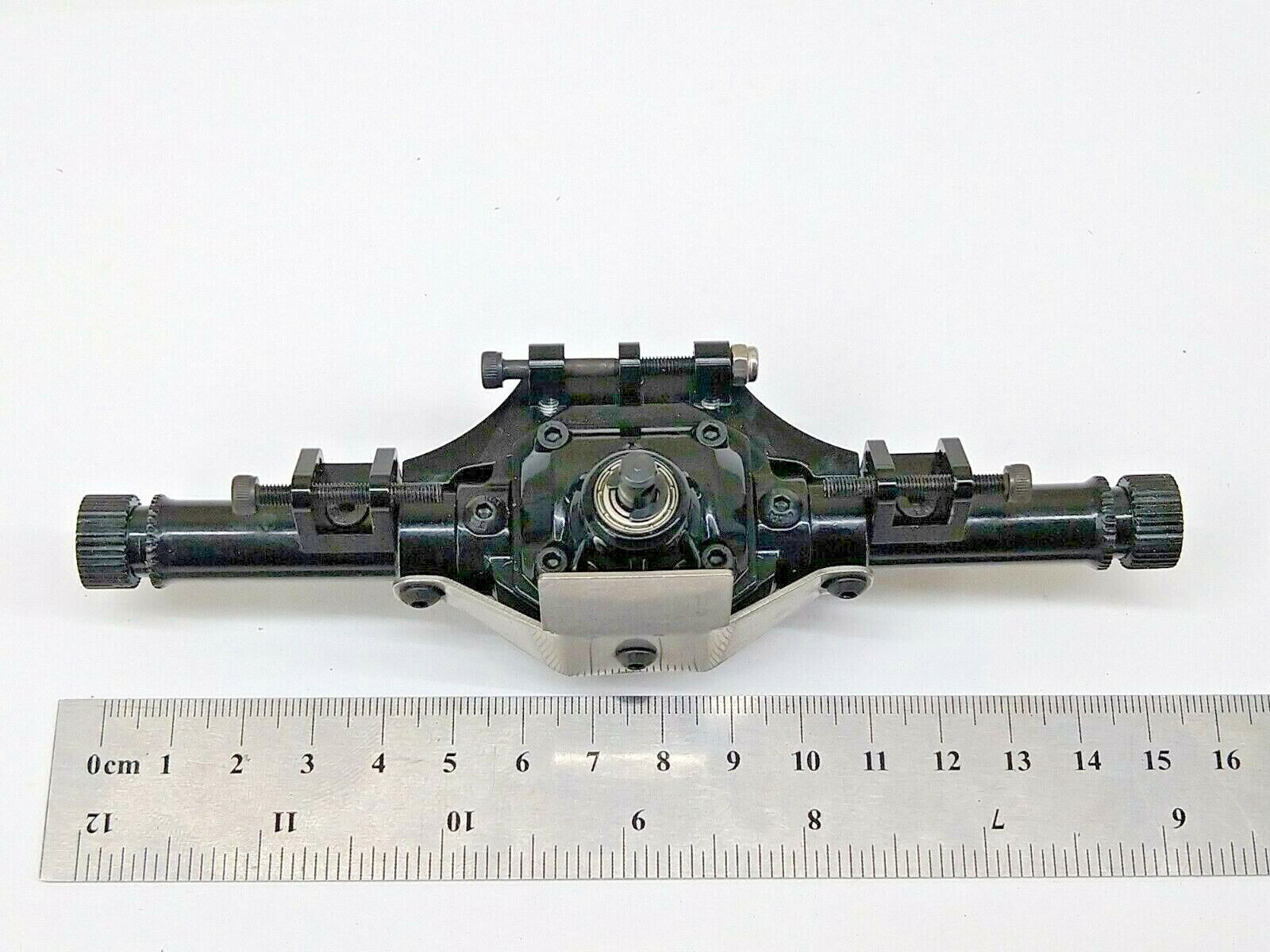

![](https://cdn.myportfolio.com/140cb7b4-d6a4-4d25-820b-52a47e89badd/5235fcf2-21b7-4eaa-bfa1-a6cdf0aa7059_rw_1920.jpg?h=4fc4d9c2c041915d7d0e49c017ffd0a0)
