Scope
There wasn't one company-wide dimensions standard for the wheels, it caused a lot of compatibility problems. Every new wheel project was designed "From scratch", and I had to put an end to it.
Challenges
- Gathering marketing data and user feedback on popular wheels and tires

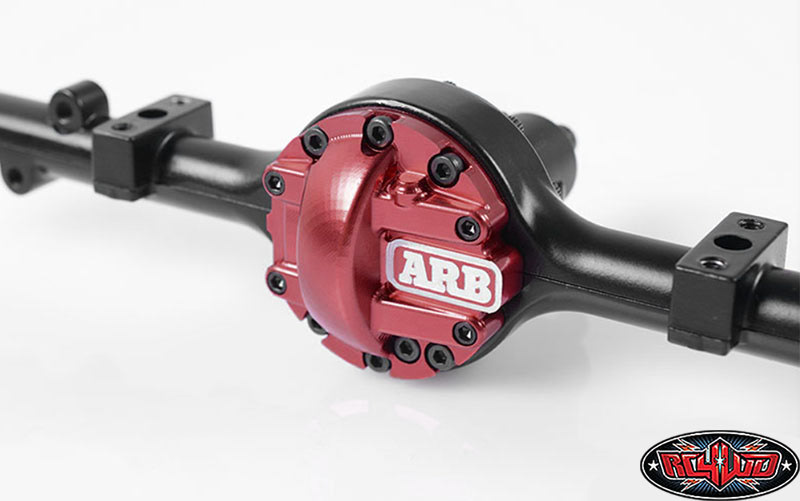

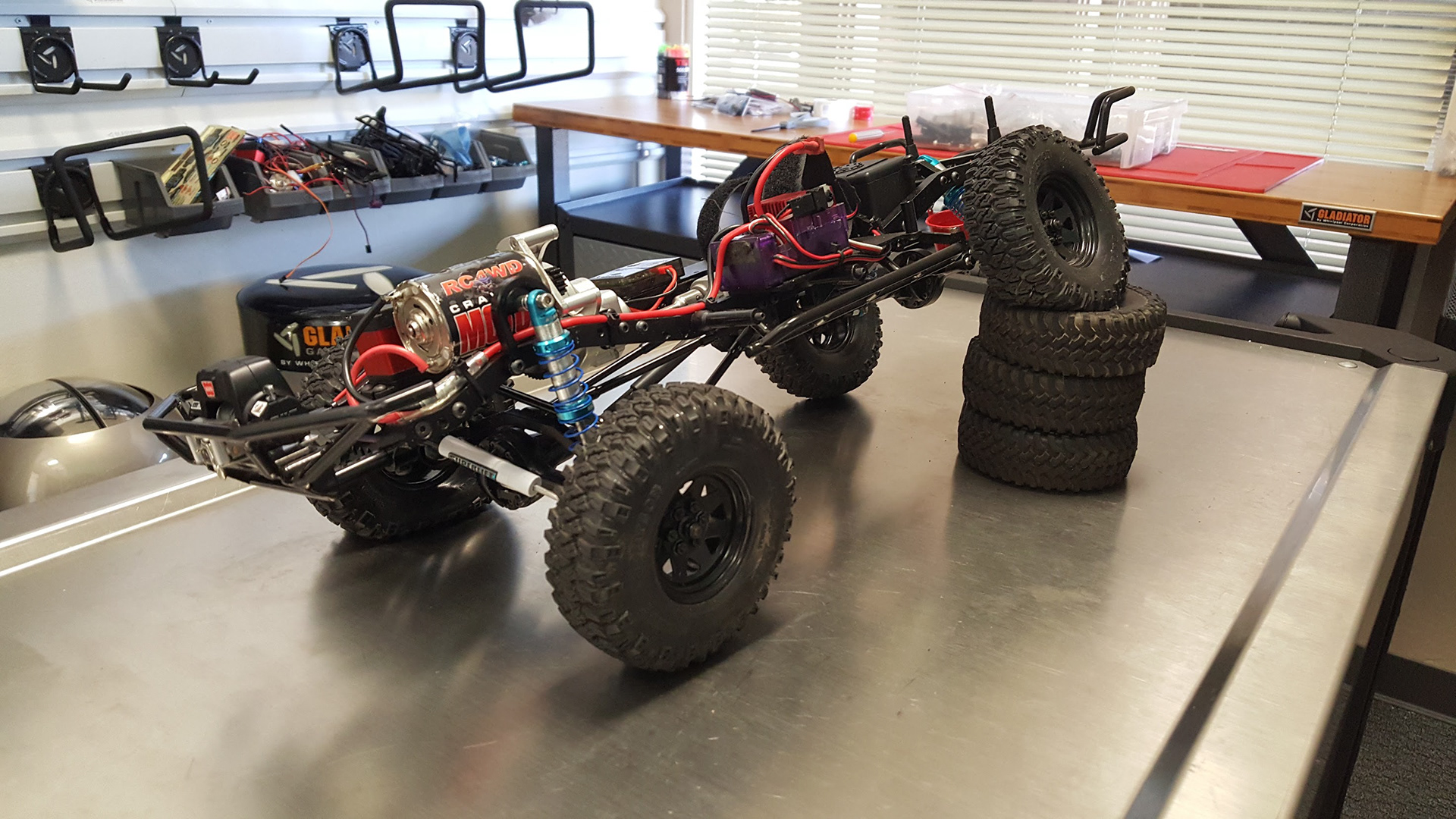

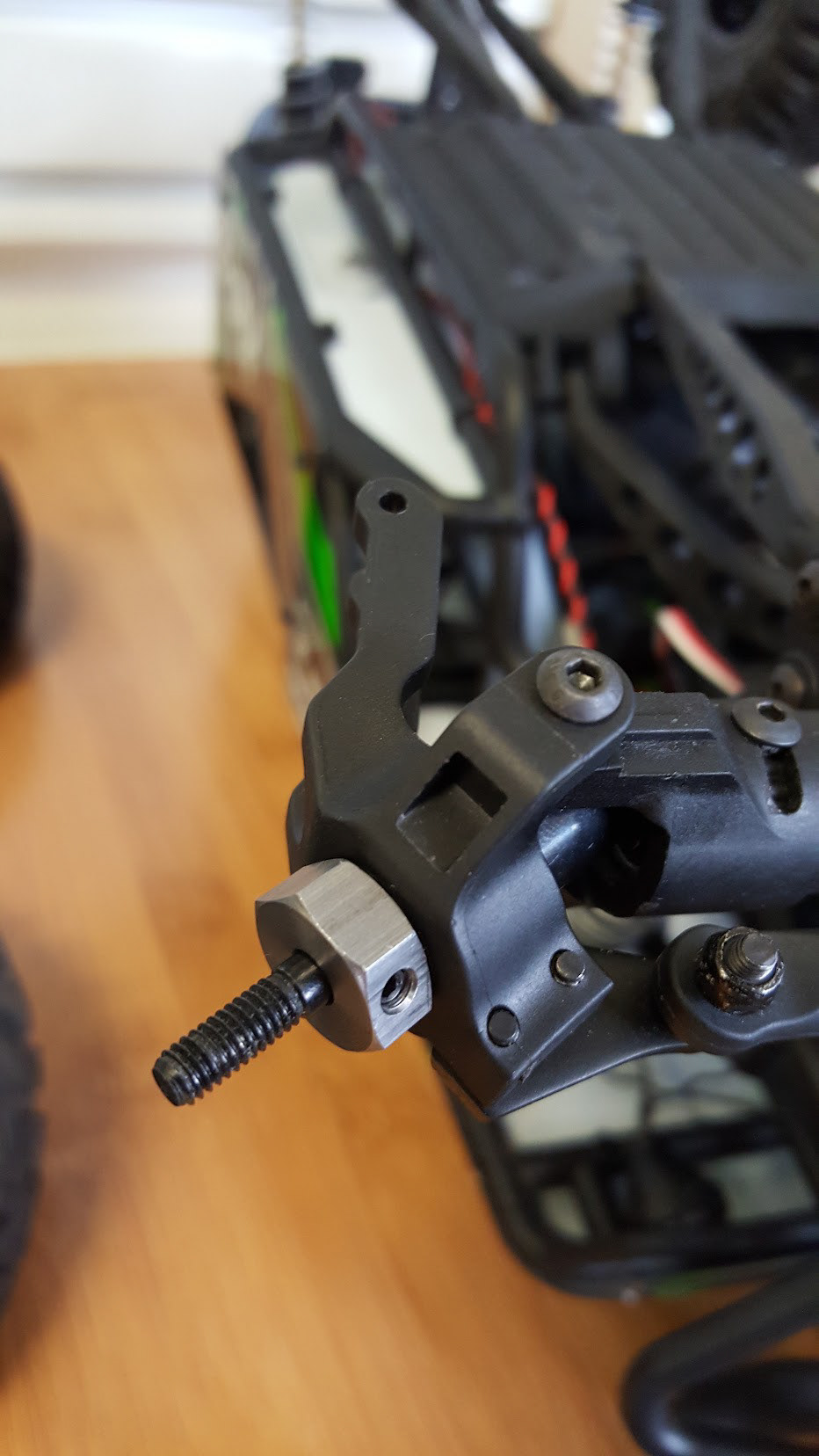

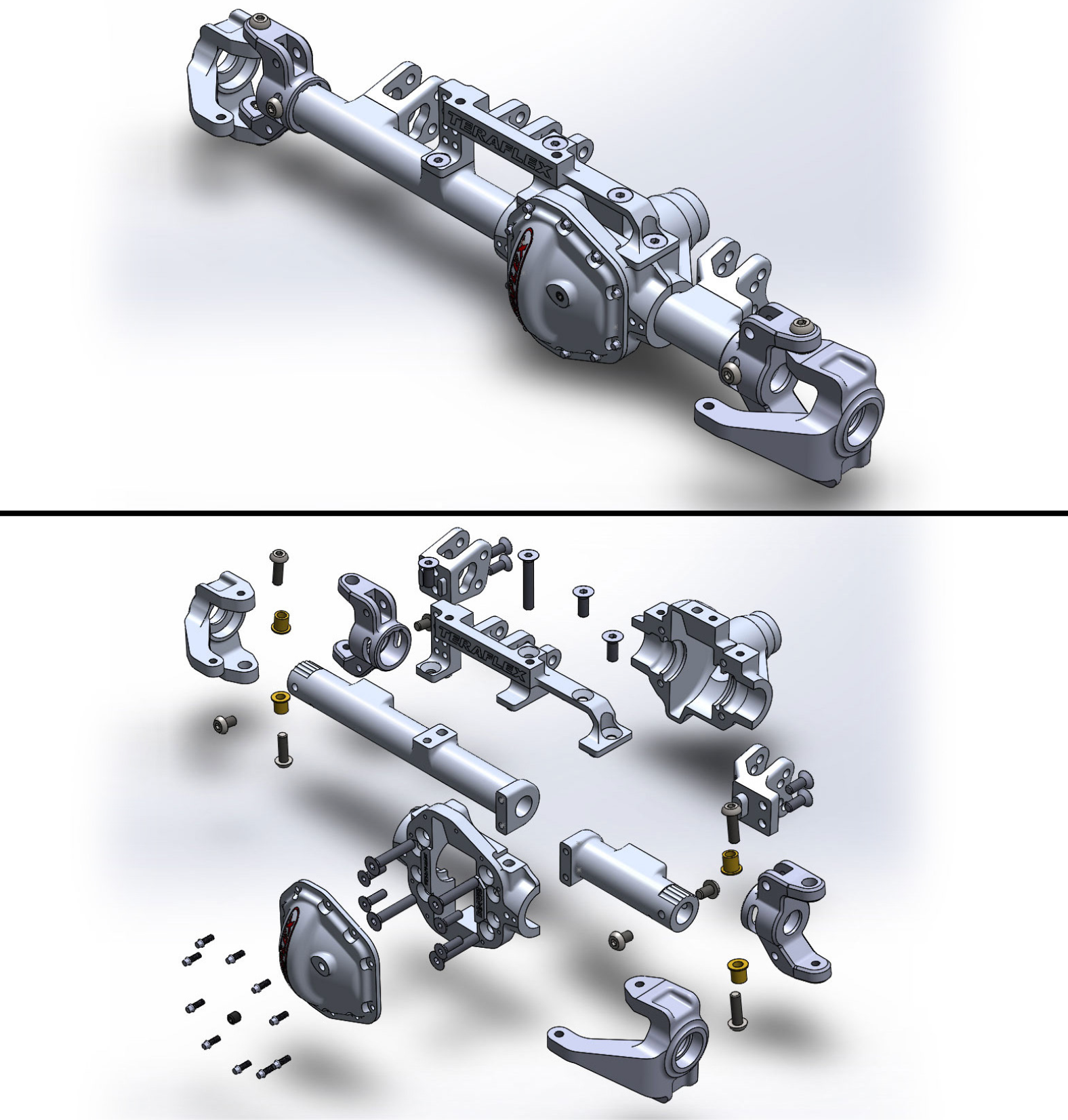

- Testing new standard wheel with tires and axles (assembly, compatibility, reliability, etc.)
- Working with a dozen Shenzhen-based engineers to ensure new standard adoption
- Testing new standard wheel with tires and axles (assembly, compatibility, reliability, etc.)
- Working with a dozen Shenzhen-based engineers to ensure new standard adoption
Deliverables
- Realistic 1:10 scale copy of the licensed Mickey Tompson wheel
- Standardized system of dimensions and guidelines for all future scale wheels projects
- Standardized system of dimensions and guidelines for all future scale wheels projects

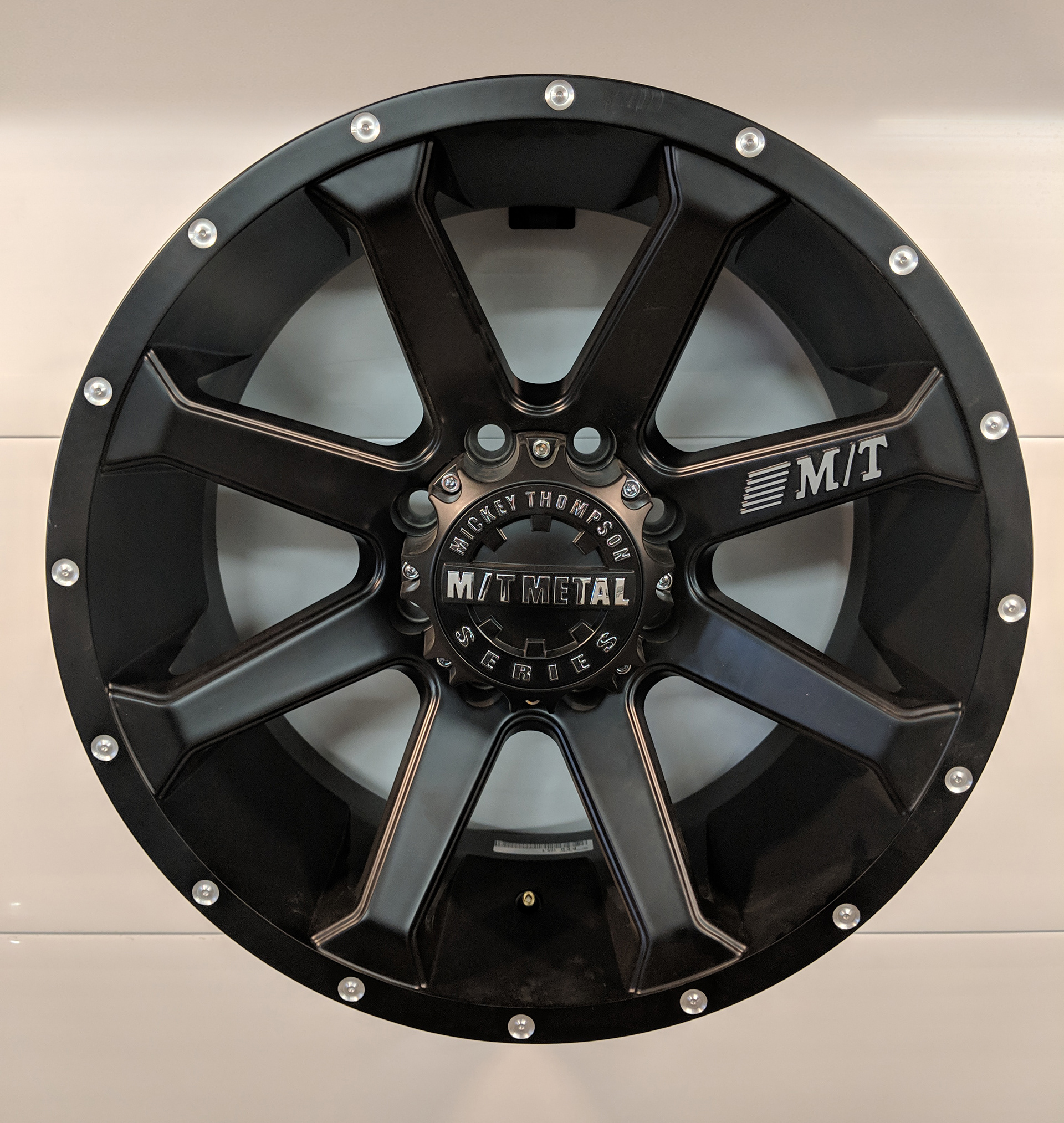

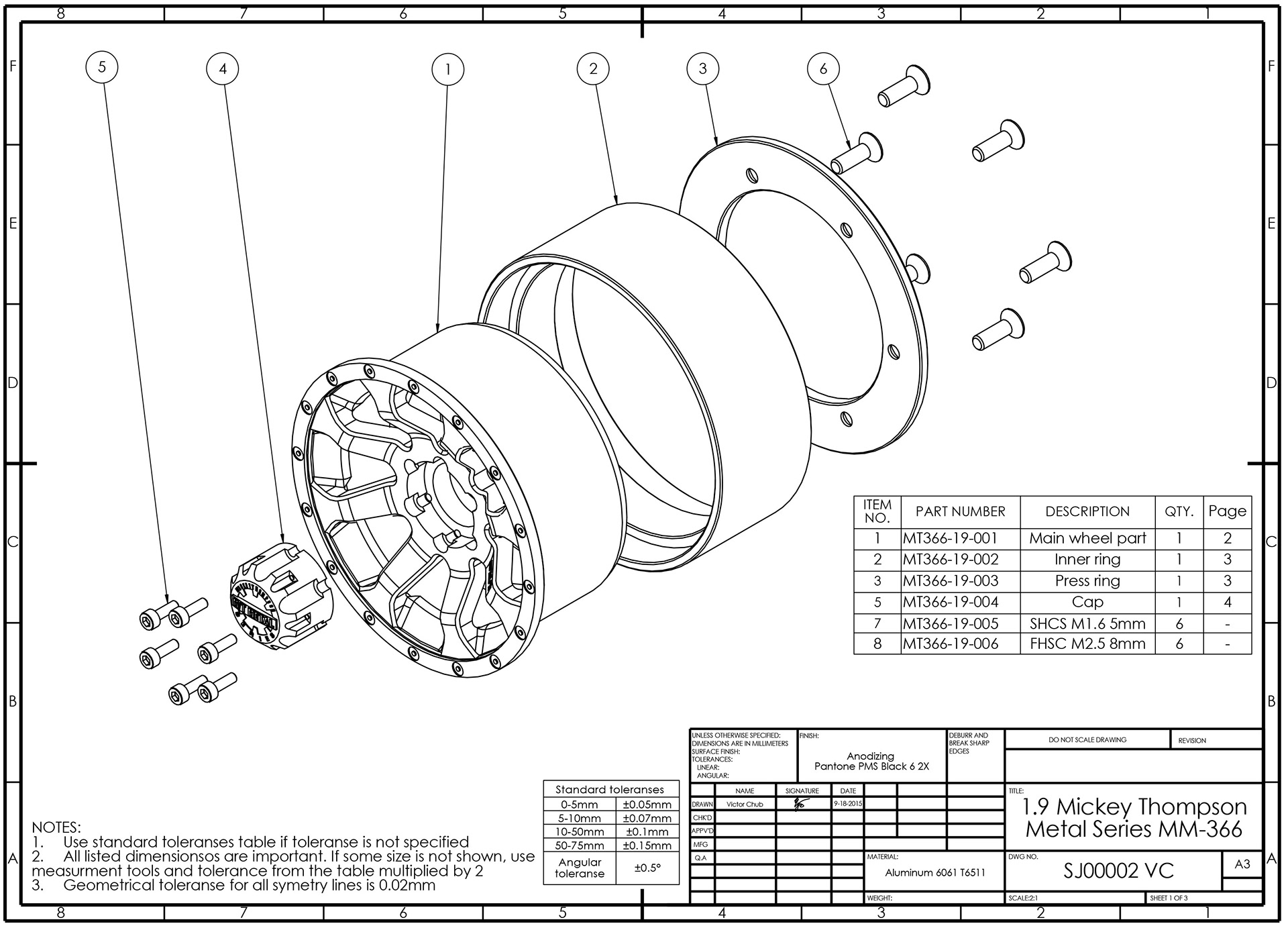

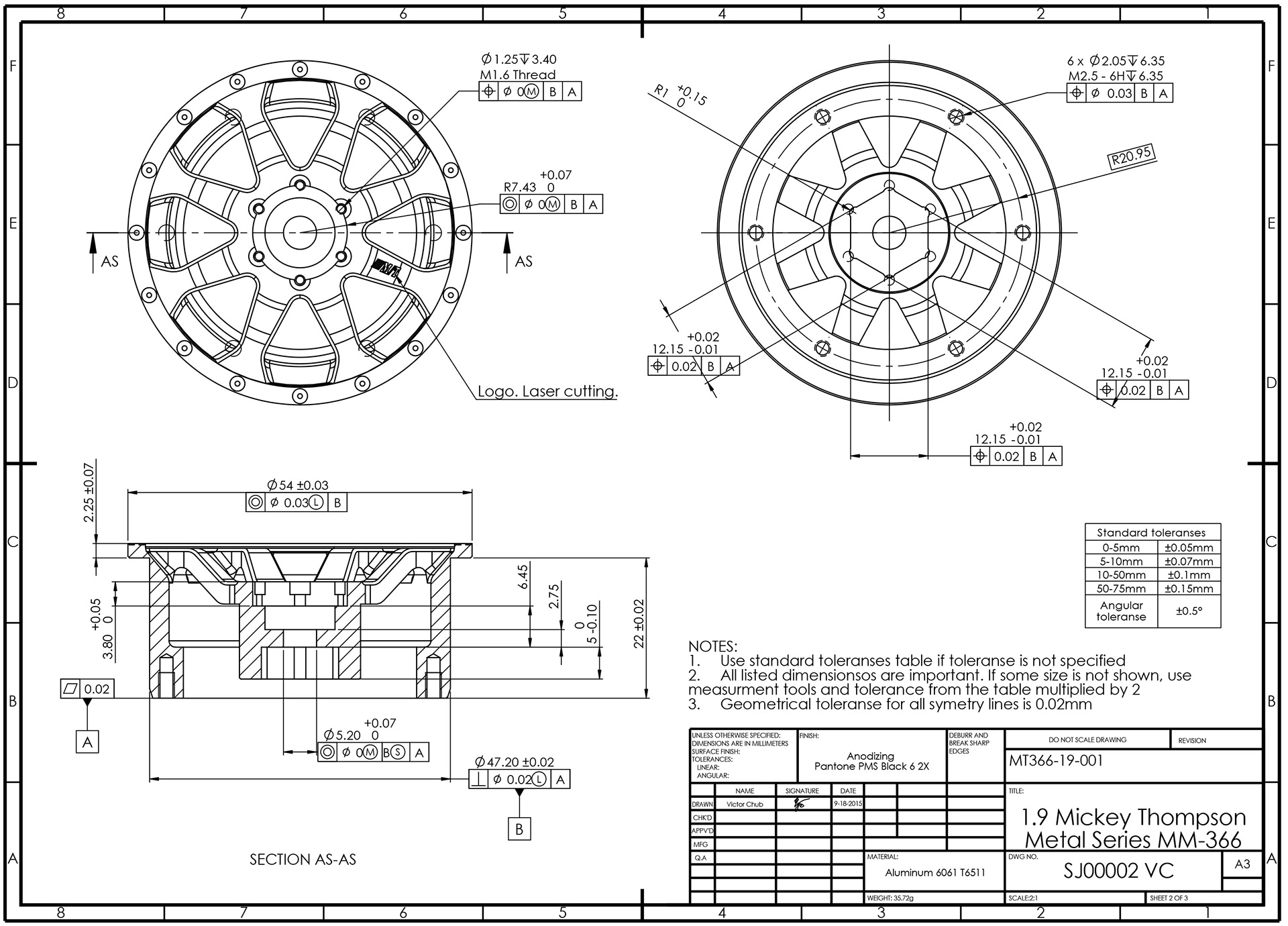

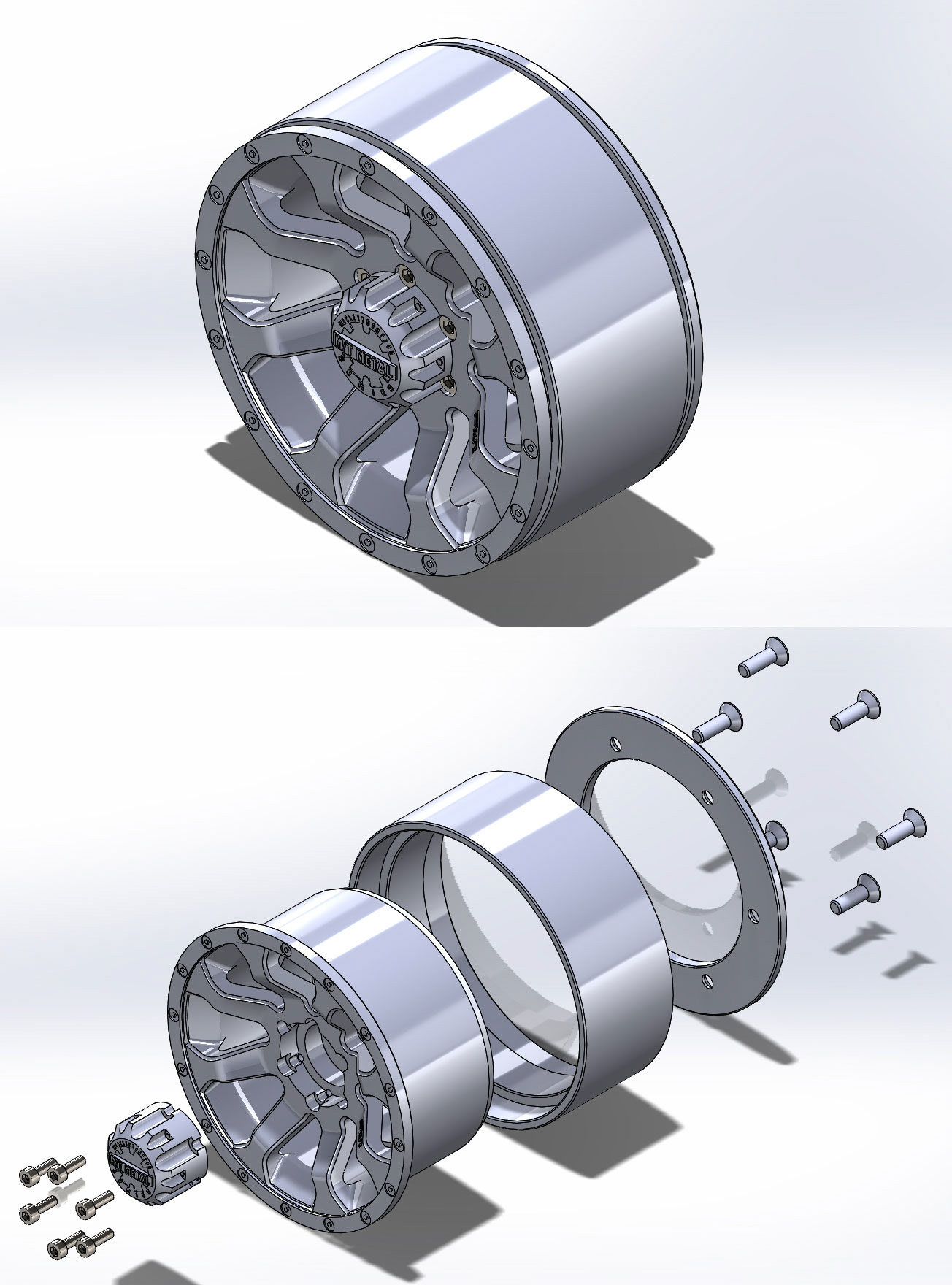

Original reference and CAD
![](https://cdn.myportfolio.com/140cb7b4-d6a4-4d25-820b-52a47e89badd/85fc8b7e-d37d-4bce-974c-bbc90f4d959f_rw_1920.jpg?h=d07f4d4279d7e2888b0848c9f3e8f7de)
![](https://cdn.myportfolio.com/140cb7b4-d6a4-4d25-820b-52a47e89badd/6b743301-26dc-40c8-a7bd-f046eefa9c41_rw_1920.jpg?h=b4cf362b80eb5e02151ec2dc3ed45825)
![](https://cdn.myportfolio.com/140cb7b4-d6a4-4d25-820b-52a47e89badd/84655cf1-f059-4248-9965-21122f31df79_rw_1920.jpg?h=1bb36ebc03c8ec5f527354bdc98a850a)
![](https://cdn.myportfolio.com/140cb7b4-d6a4-4d25-820b-52a47e89badd/5c01046d-a91a-4fcb-bb86-8e6ed63bf133_rw_1920.jpg?h=74458ddcb2968f02fe69e68054a60ffa)

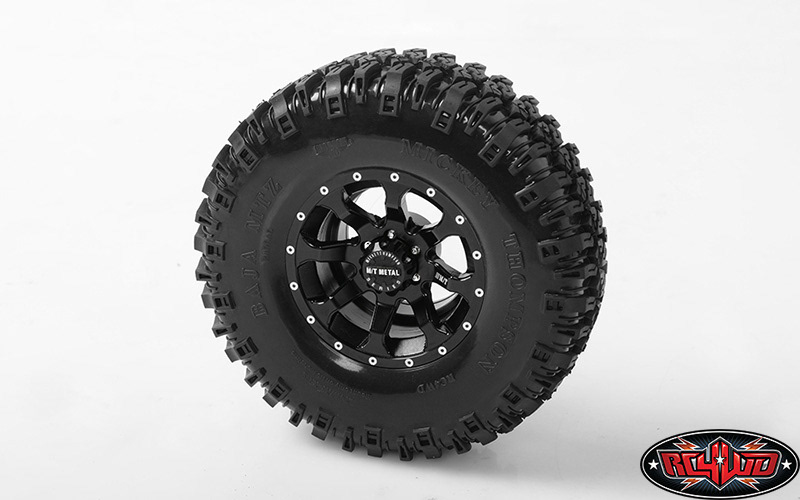

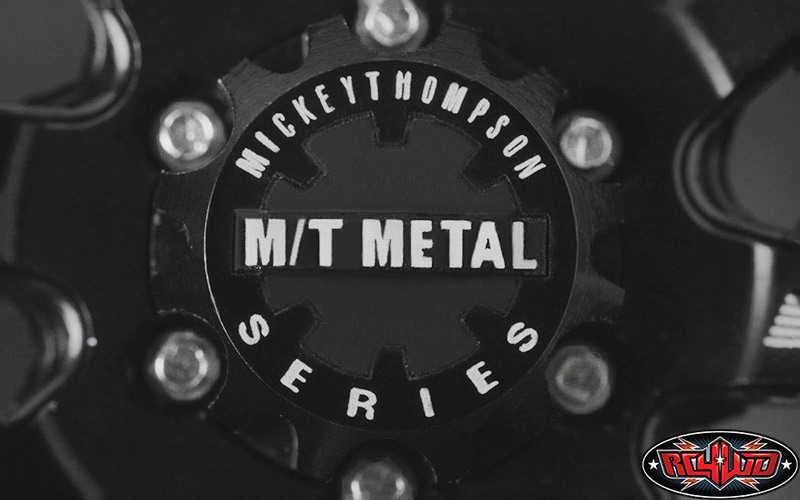

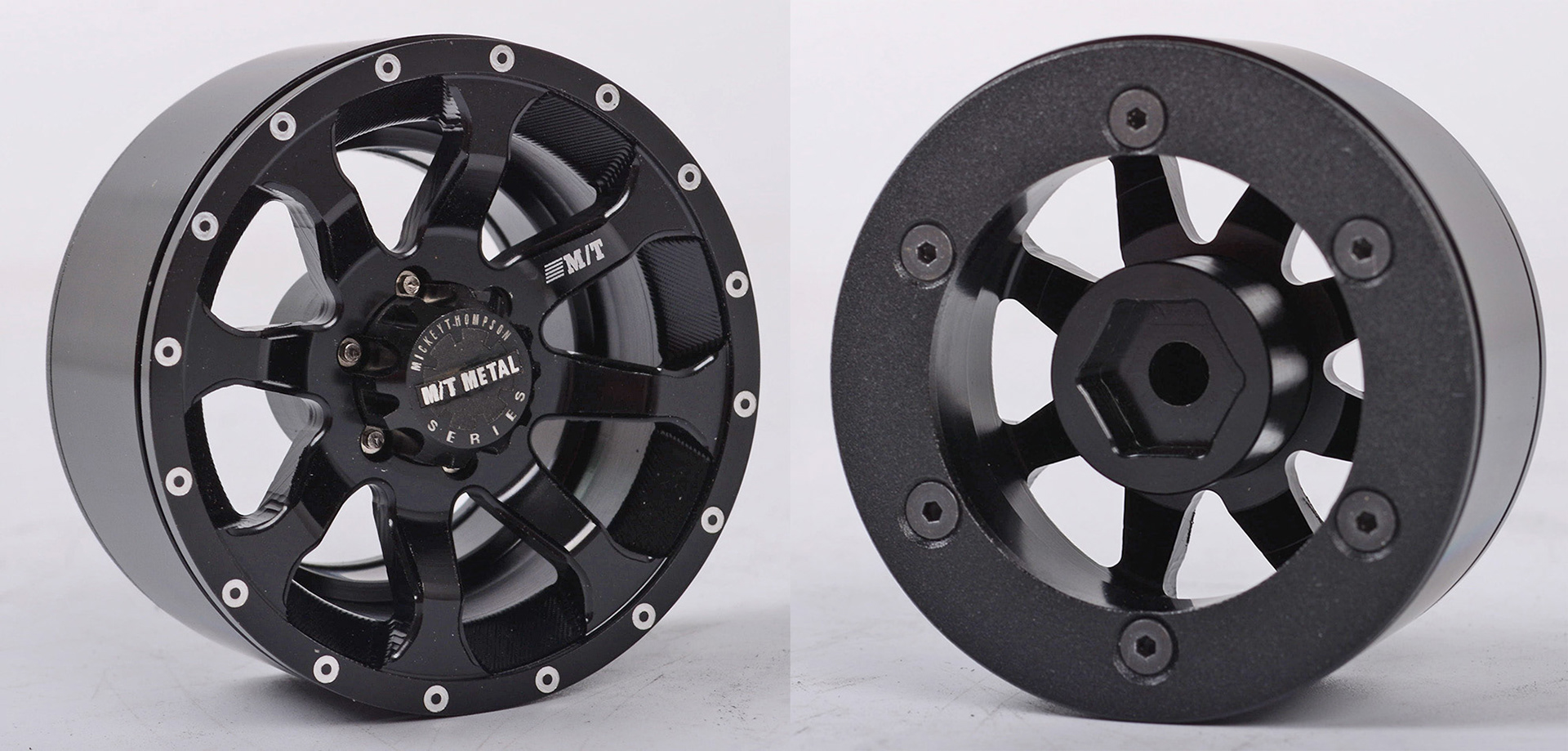

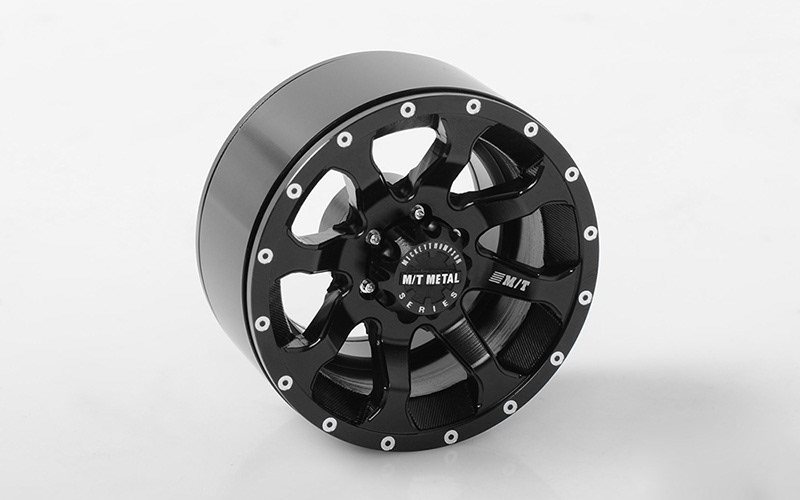

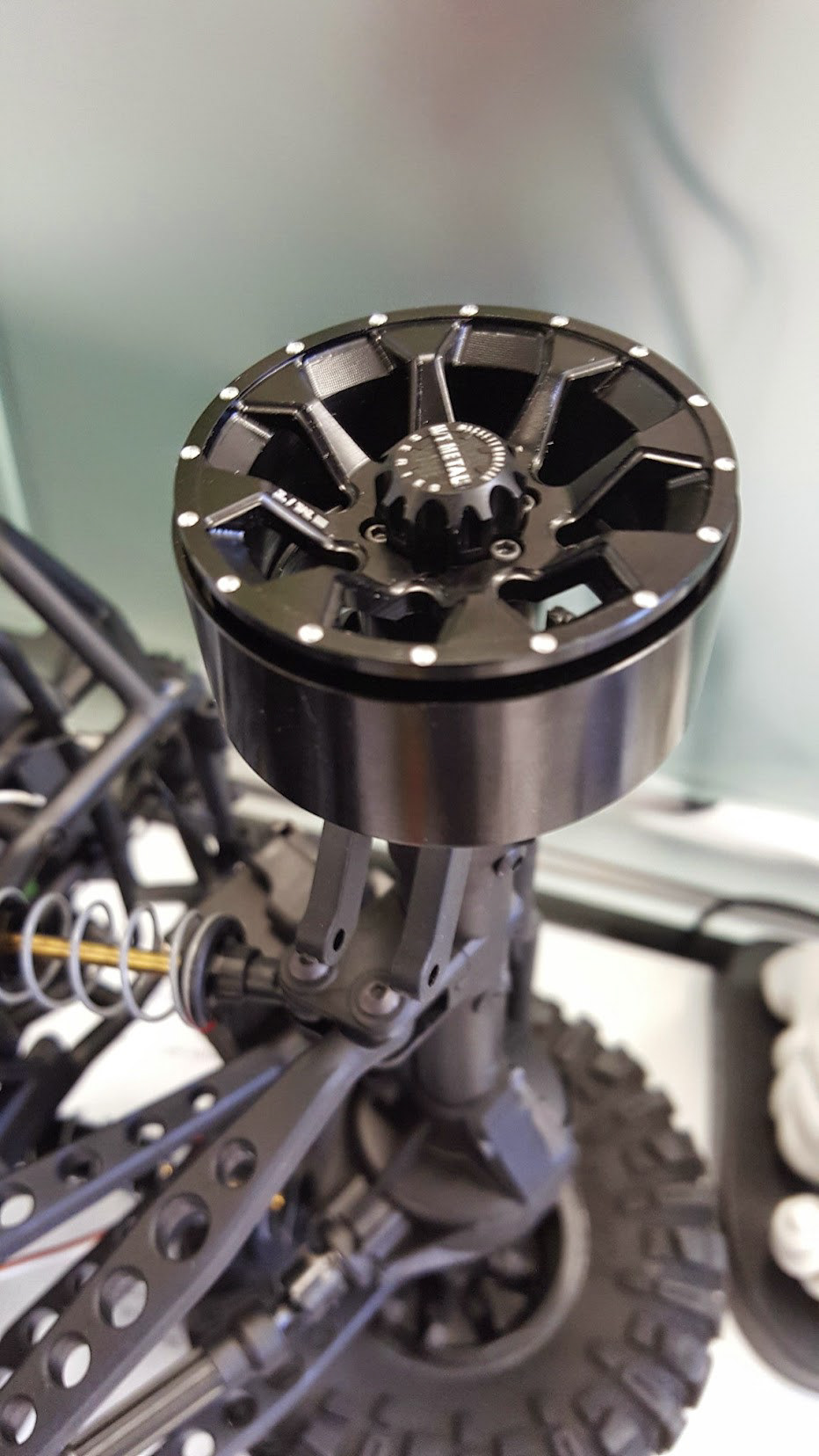

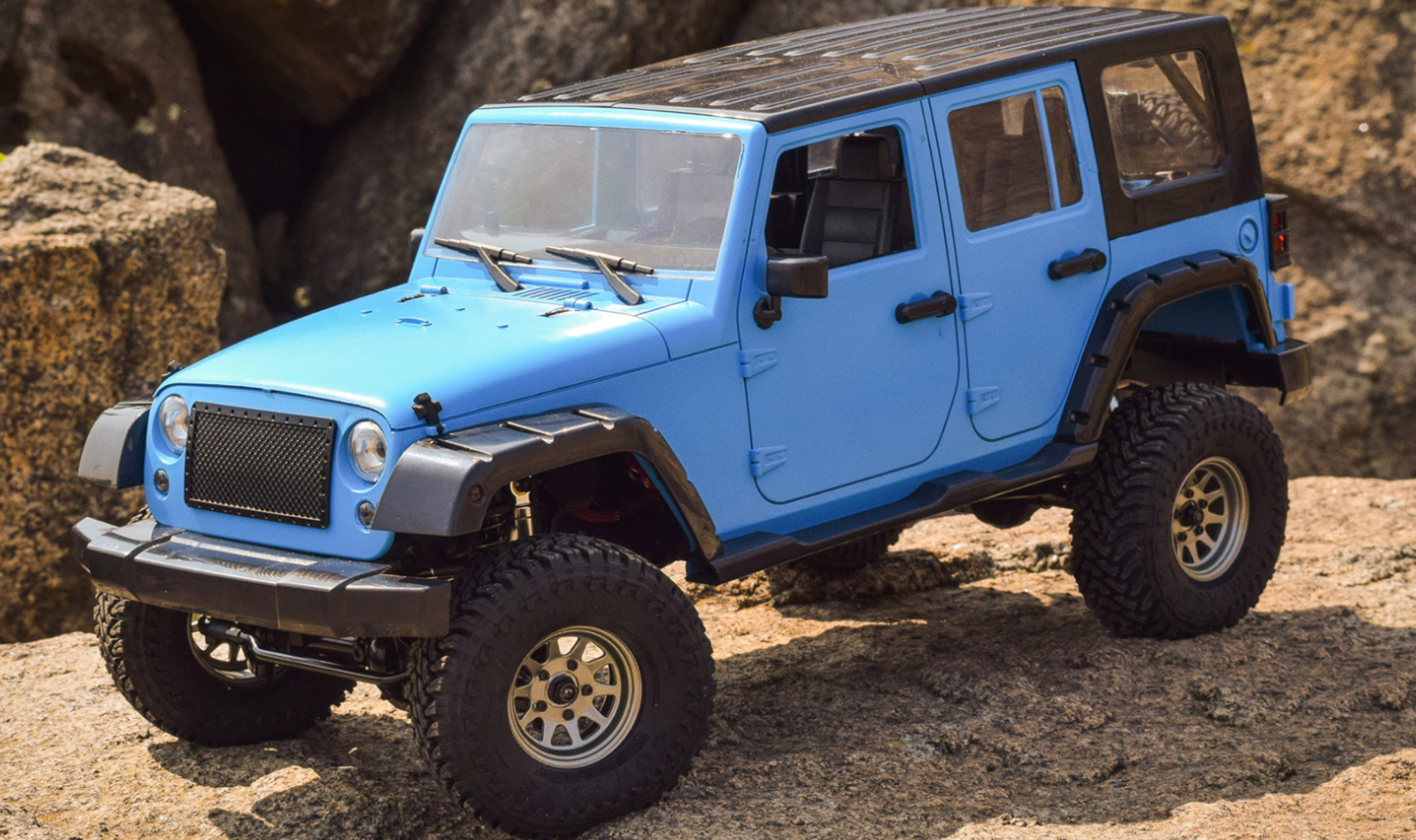

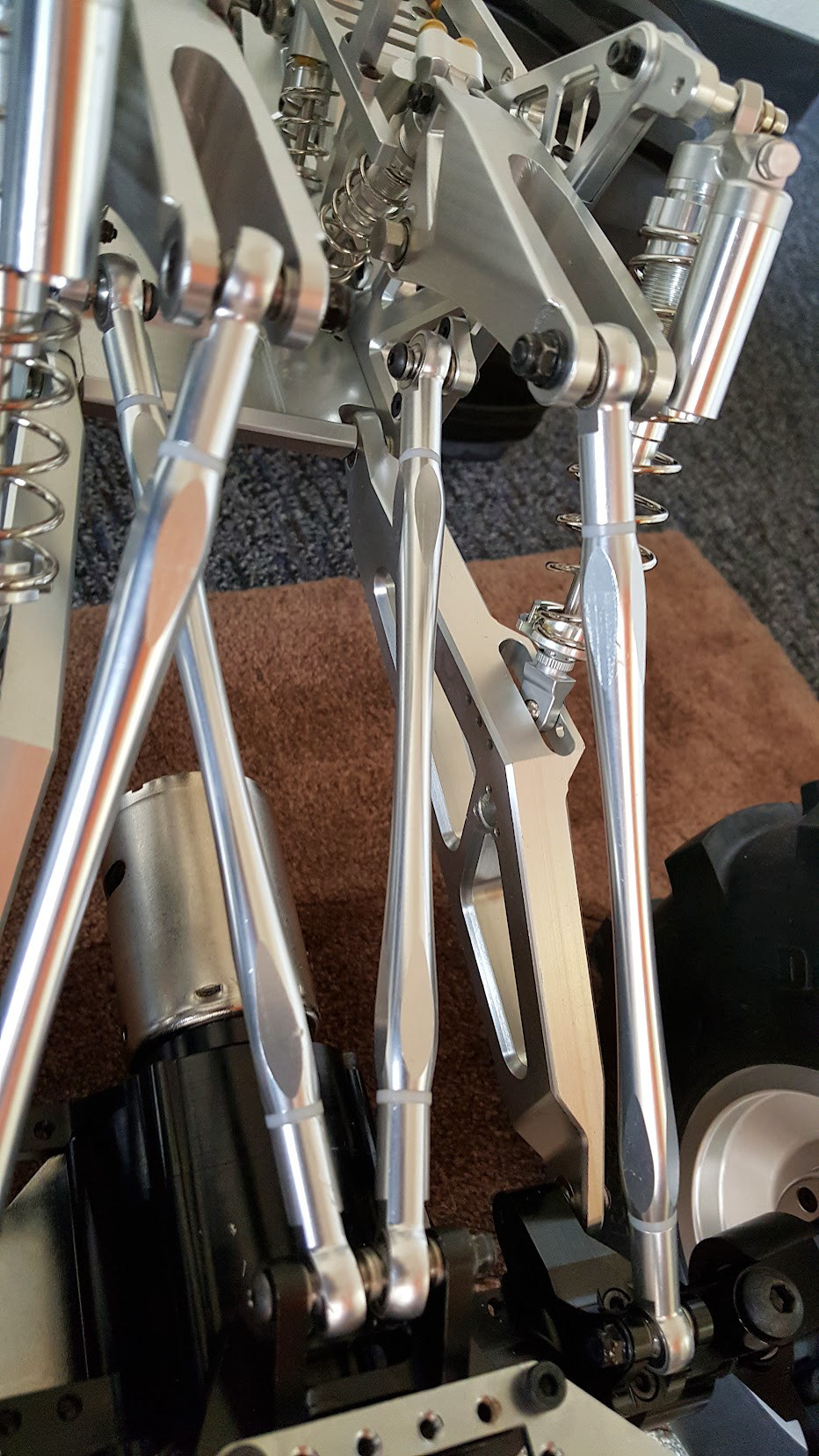

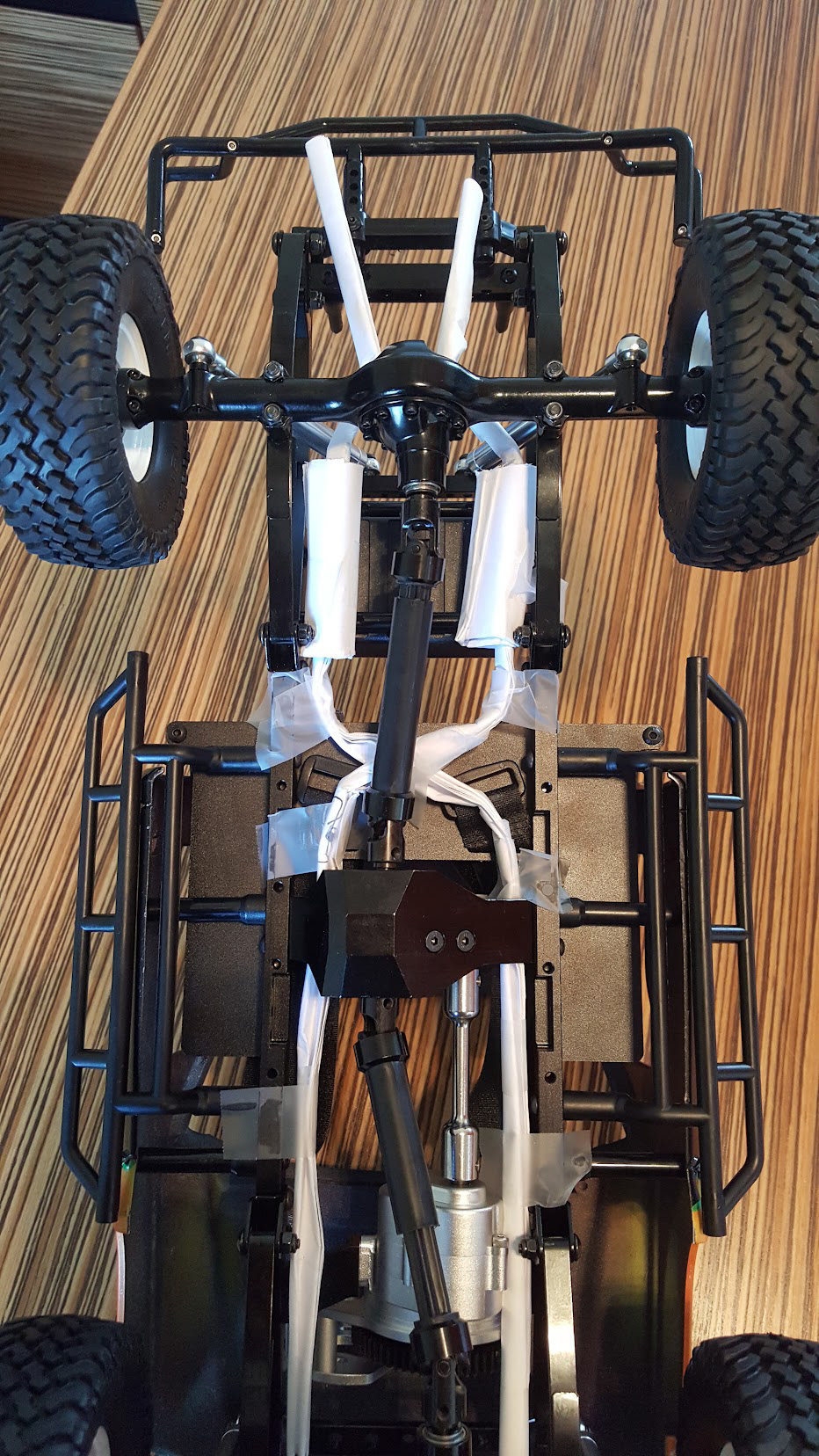

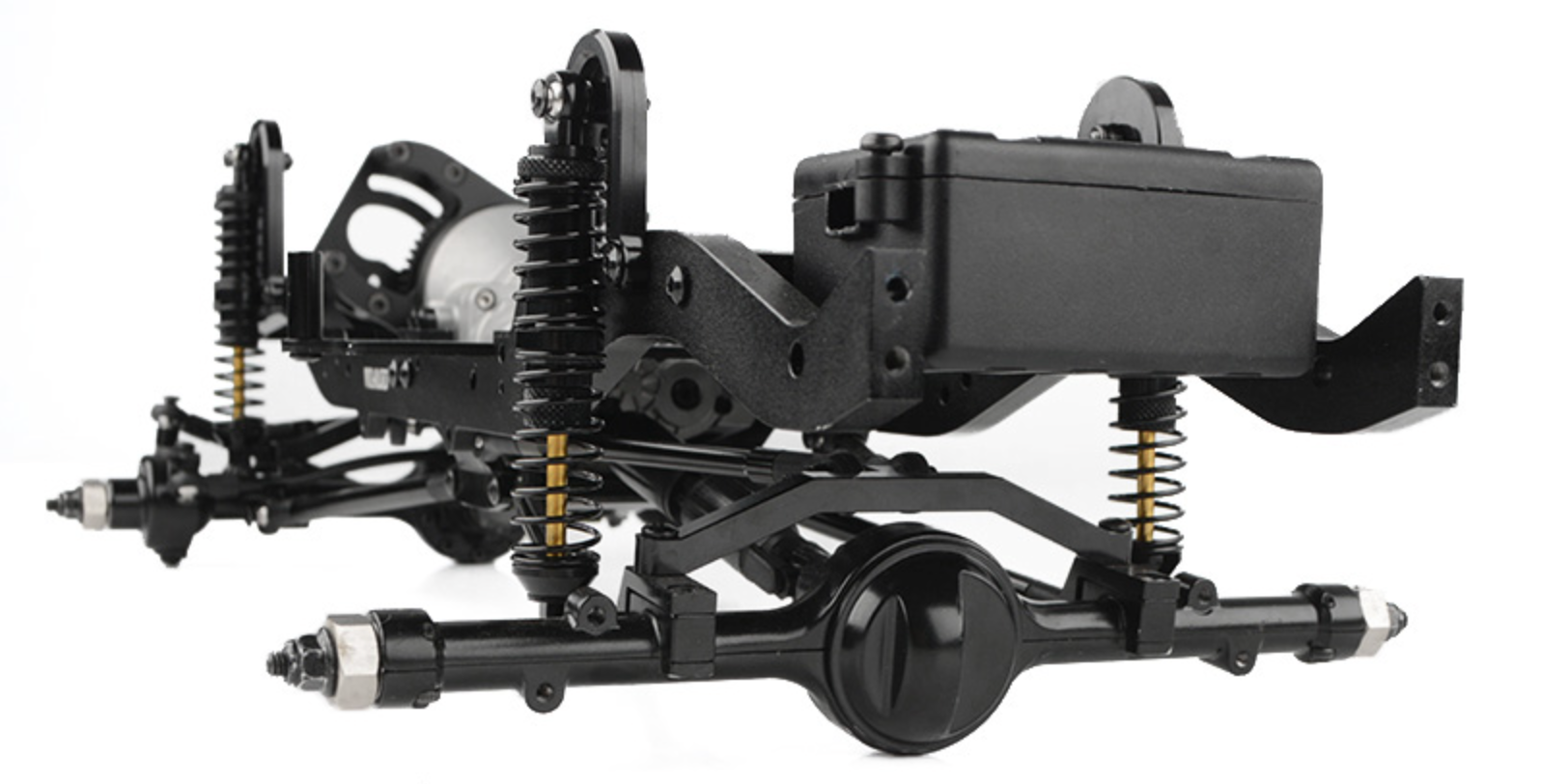

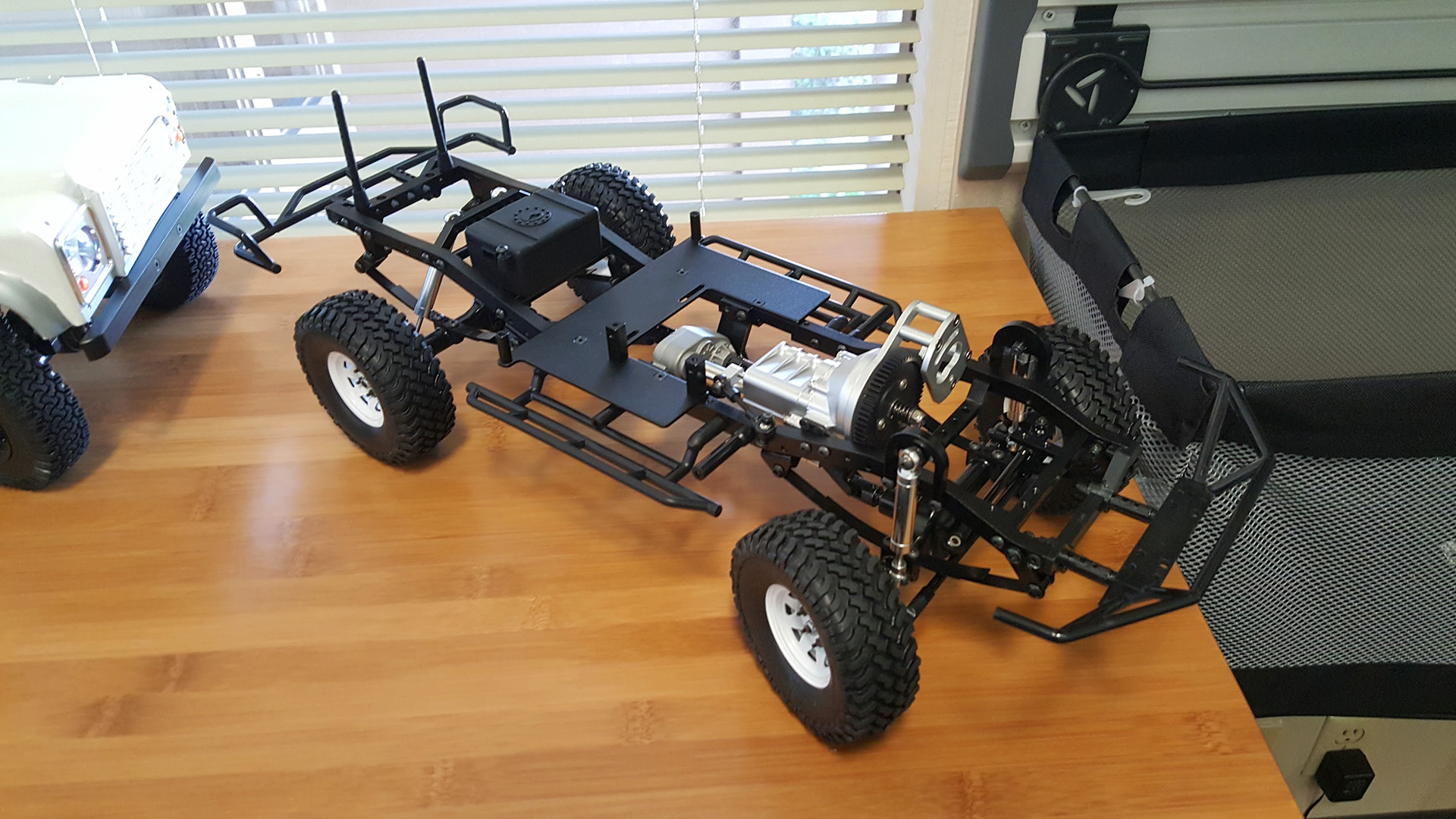

Photos
![](https://cdn.myportfolio.com/140cb7b4-d6a4-4d25-820b-52a47e89badd/95bd344c-50b8-4812-b987-6d84370b973f_rw_1200.jpg?h=6d459da9999eac1d269c3f4c33690f76)
![](https://cdn.myportfolio.com/140cb7b4-d6a4-4d25-820b-52a47e89badd/ac532603-8c77-4879-b7c4-73318d6c52dc_rw_1200.jpg?h=d1785fe1a4c3d1ea52deeee5a1d5f275)
![](https://cdn.myportfolio.com/140cb7b4-d6a4-4d25-820b-52a47e89badd/37fa658a-9ff3-454e-a826-05e0efc7a72a_rw_1200.jpg?h=54b2b670047dfd8181bdca80bad55aec)
![](https://cdn.myportfolio.com/140cb7b4-d6a4-4d25-820b-52a47e89badd/c1ac6a92-f6b1-4112-b0b5-e147dbcde338_rw_1200.jpg?h=c6a0ec17a3b1aef536cdcbed63f2302a)
![](https://cdn.myportfolio.com/140cb7b4-d6a4-4d25-820b-52a47e89badd/c45631a2-8de0-4548-8487-7bc36d18a9e2_rw_1920.jpg?h=1857e9f6cf6b11b38624804f13daa541)
Standard guidelines
![](https://cdn.myportfolio.com/140cb7b4-d6a4-4d25-820b-52a47e89badd/2b8aeb0f-8083-430a-8867-2963235fe1d7_rw_1920.jpg?h=7dbf99a3c9646ceef6eec09b1a4b3245)
