Scope
Design a truck hard body to fit an existing chassis
Design a truck hard body to fit an existing chassis
Challenges
- Deep parametric modeling
- Class A surface modeling
- Complex shape for injection molding
- Deep parametric modeling
- Class A surface modeling
- Complex shape for injection molding
Deliverables
A scale truck body with a lot of details and identical to a real truck proportions
A scale truck body with a lot of details and identical to a real truck proportions
Only a short two-door version was selected for manufacturing

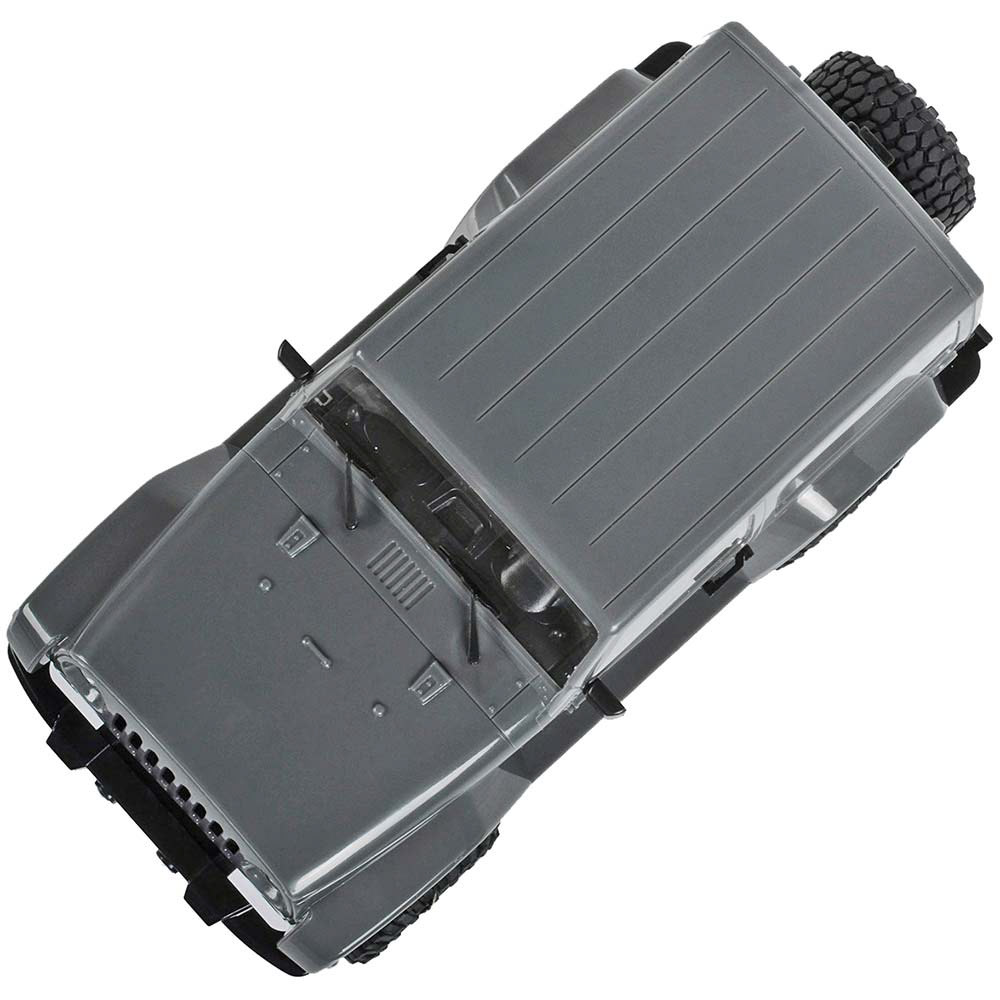

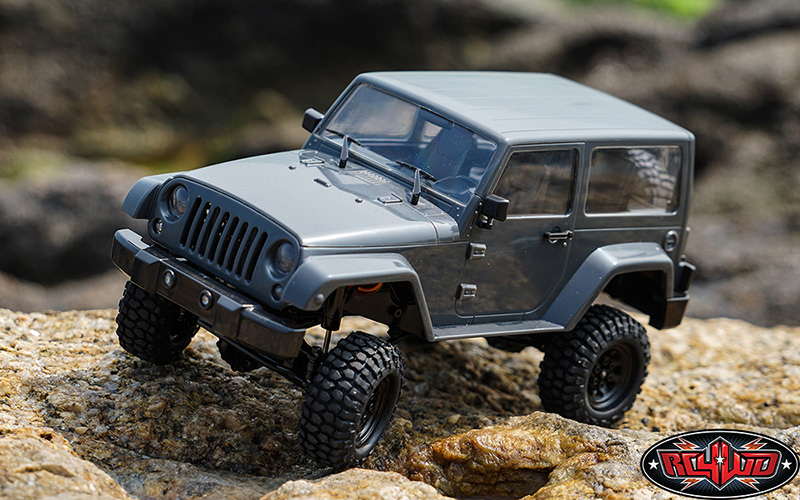

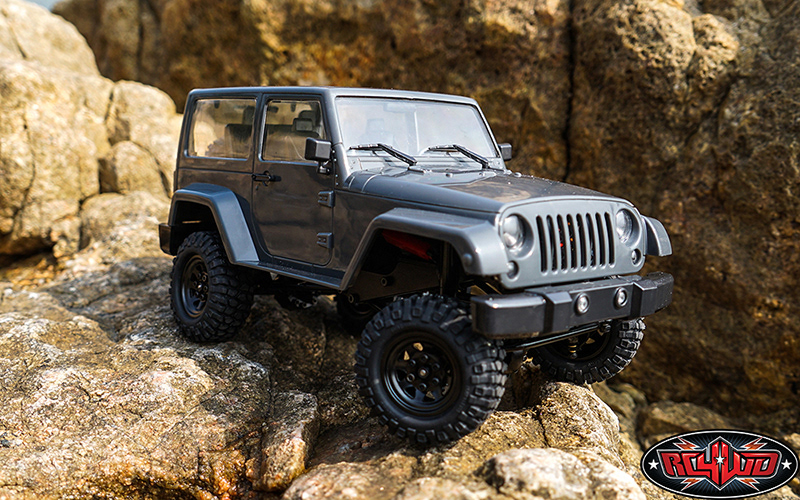

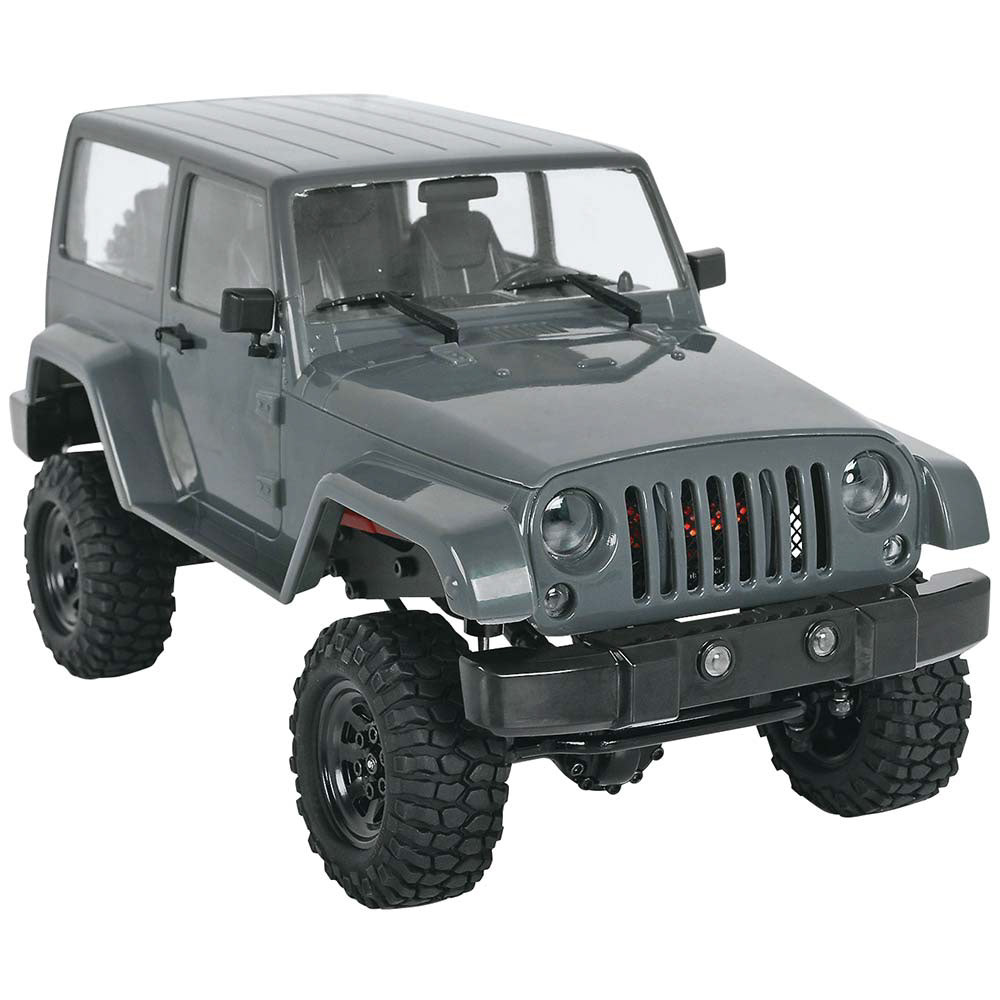

Photos






Design
Design was modified to a two-door simplified version to fit different chassis.
